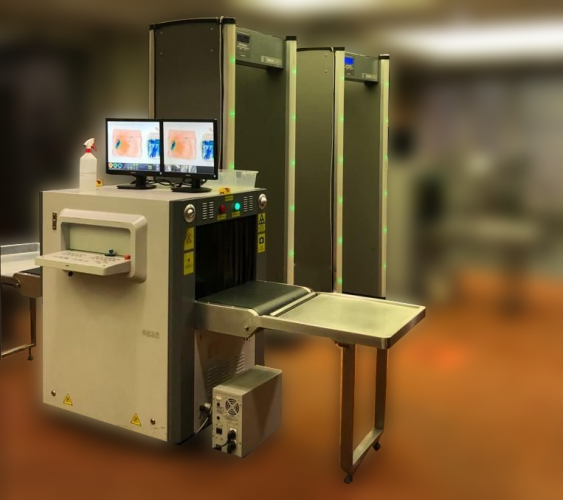

X-Ray Machines
Detelec X-Ray Machines are modern, versatile and eco-friendly scanners. They are designed to screen luggage at checkpoints.
MAIN FEATURES:
Different tunnel sizes from 500 x 300mm to 1505 x 1800mm.
Single and Dual-energy units to distinguish between
organic and non-organic materials.
Thread Image Projection to train and monitor the performance of operators.
Optional integrated CCTV System to monitor surrounding areas.
Conveyor Motion Sensor System to reduce power consumption.
Detection of ultra-thin materials High-Speed Data Acquisition and
Transfer with High Image Resolution. Multi-display Joint Terminals and Remote Terminal Display with Multi-level user interface.
Our Products
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() |
---|---|---|---|---|---|---|

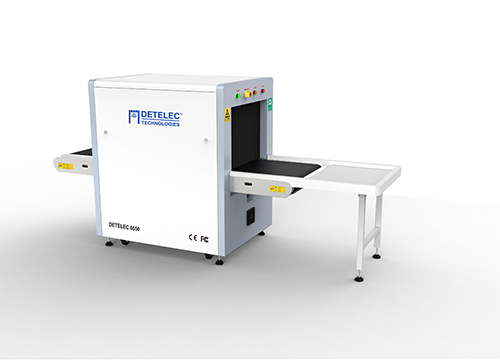

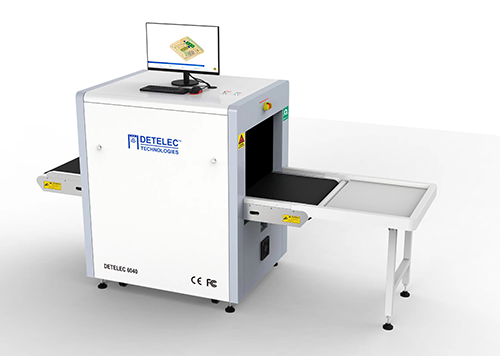

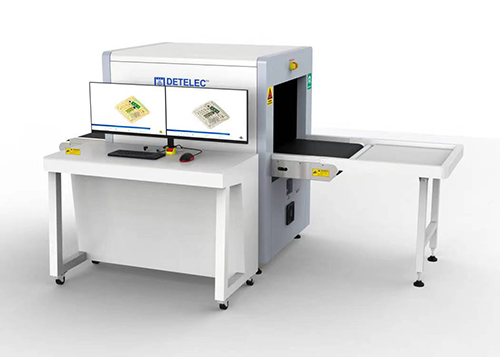

Detelec 5030A | Detelec 5030C | Detelec 6040 | Detelec 6040 (Desk incl.) | Detelec 6550 | Detelec 6550 (Desk incl.) | Detelec 6550HR |
Exterior Dimensions: L(1660mm) x W(746mm) x H(1165mm) | Exterior Dimensions: L(1660mm) x W(746mm) x H(1165mm) | Exterior Dimensions: L(2648mm) x W(844mm) x H(1234mm) | Exterior Dimensions: L(2648mm) x W(844mm) x H(1234mm) | Exterior Dimensions: L(2808.45mm) x W(902mm) x H(1362.5mm) | Exterior Dimensions: L(2808.45mm) x W(902mm) x H(1362.5mm) | Exterior Dimensions: W(2288mm) x H(1320mm) |
Tunnel Size: W(503mm) x H(301mm) | Tunnel Size: W(503mm) x H(301mm) | Tunnel Size: W(600mm) x H(400mm) | Tunnel Size: W(600mm) x H(400mm) | Tunnel Size: W(659.4mm) x H(503.85mm) | Tunnel Size: W(659.4mm) x H(503.85mm) | Tunnel Size: W(650mm) x H(505mm) |
Penetration:
32mm Steel | Penetration:
32mm Steel | Penetration:
30mm Steel | Penetration:
30mm Steel | Penetration:
30mm Steel | Penetration:
30mm Steel | Penetration:
34mm Steel |
Single or Dual View: Single | Single or Dual View: Single | Single or Dual View: Single | Single or Dual View: Single | Single or Dual View: Single | Single or Dual View: Single | Single or Dual View: Dual |
Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s up to 0,3 m/s |
Operation System: Linux | Operation System: Linux | Operation System: Linux | Operation System: Linux | Operation System: Linux | Operation System: Linux | Operation System: Linux |
View Brochure | View Brochure | View Brochure | View Brochure |
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() |
---|---|---|---|---|---|---|---|

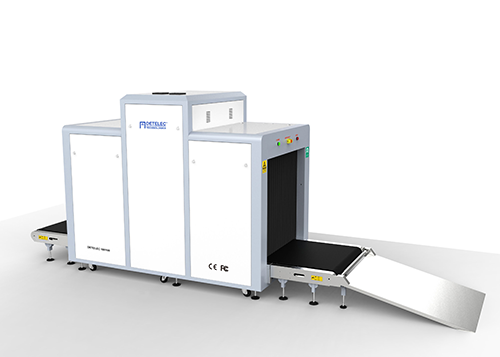

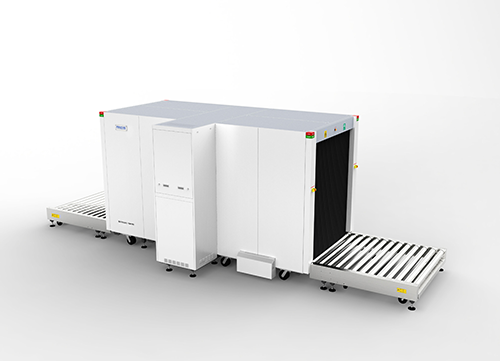

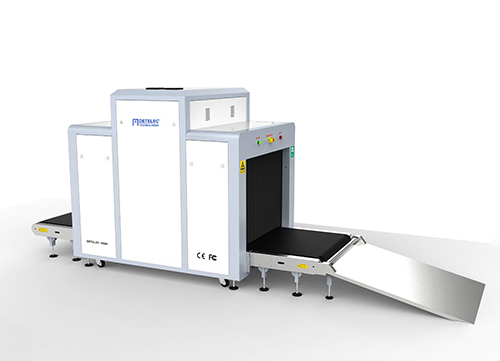

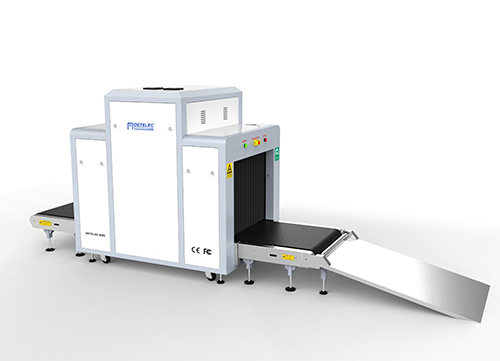

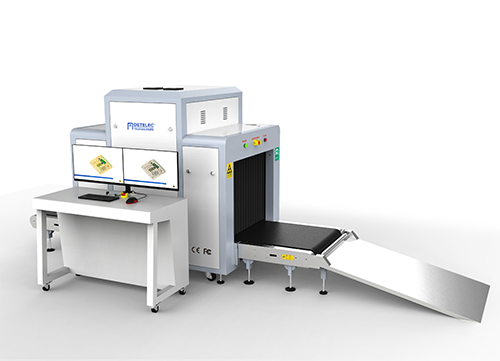

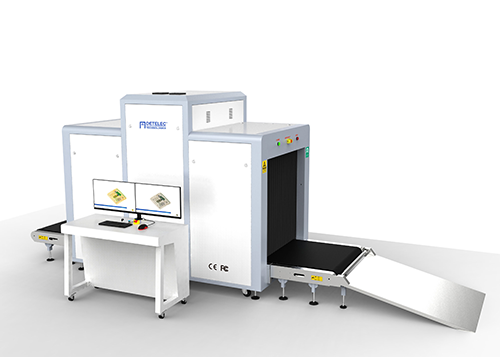

Detelec 8065 | Detelec 8065 (Desk incl.) | Detelec 10080 | Detelec 10080 (Desk incl.) | Detelec 100100 | Detelec 100100 (Desk incl.) | Detelec 150180 | Detelec 150180 (Desk incl.) |
Exterior Dimensions: L(2848mm) x W(1095mm) x H(1536mm) | Exterior Dimensions: L(2848mm) x W(1095mm) x H(1536mm) | Exterior Dimensions: L(4341mm) x W(1295mm) x H(1716.5mm) | Exterior Dimensions: L(4341mm) x W(1295mm) x H(1716.5mm) | Exterior Dimensions: L(4835mm) x W(1295mm) x H(1916.5mm) | Exterior Dimensions: L(4835mm) x W(1295mm) x H(1916.5mm) | Exterior Dimensions: L(7127mm) x W(2422mm) x H(2338mm) | Exterior Dimensions: L(7127mm) x W(2422mm) x H(2338mm) |
Tunnel Size: W(807.5mm) x H(653mm) | Tunnel Size: W(807.5mm) x H(653mm) | Tunnel Size: W(1011mm) x H(801mm) | Tunnel Size: W(1011mm) x H(801mm) | Tunnel Size: W(1011mm) x H(1006.5mm) | Tunnel Size: W(1011mm) x H(1006.5mm) | Tunnel Size: W(1505mm) x H(1800mm) | Tunnel Size: W(1505mm) x H(1800mm) |
Penetration:
30mm Steel | Penetration:
30mm Steel | Penetration:
30mm Steel | Penetration:
30mm Steel | Penetration:
27mm Steel | Penetration: 27mm Steel | Penetration:
34mm Steel | Penetration:
34mm Steel |
Single or Dual View: Dual | Single or Dual View: Dual | Single or Dual View: Dual | Single or Dual View: Dual | Single or Dual View: Dual | Single or Dual View: Dual | Single or Dual View: Dual | Single or Dual View: Dual |
Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s | Conveyor Speed: 0,2 m/s |
Operation System: Linux | Operation System: Linux | Operation System: Linux | Operation System: Linux | Operation System: Linux | Operation System: Linux | Operation System: Linux/Windows XP | Operation System: Linux/Windows XP |
View Brochure | View Brochure | View Brochure | View Brochure |
